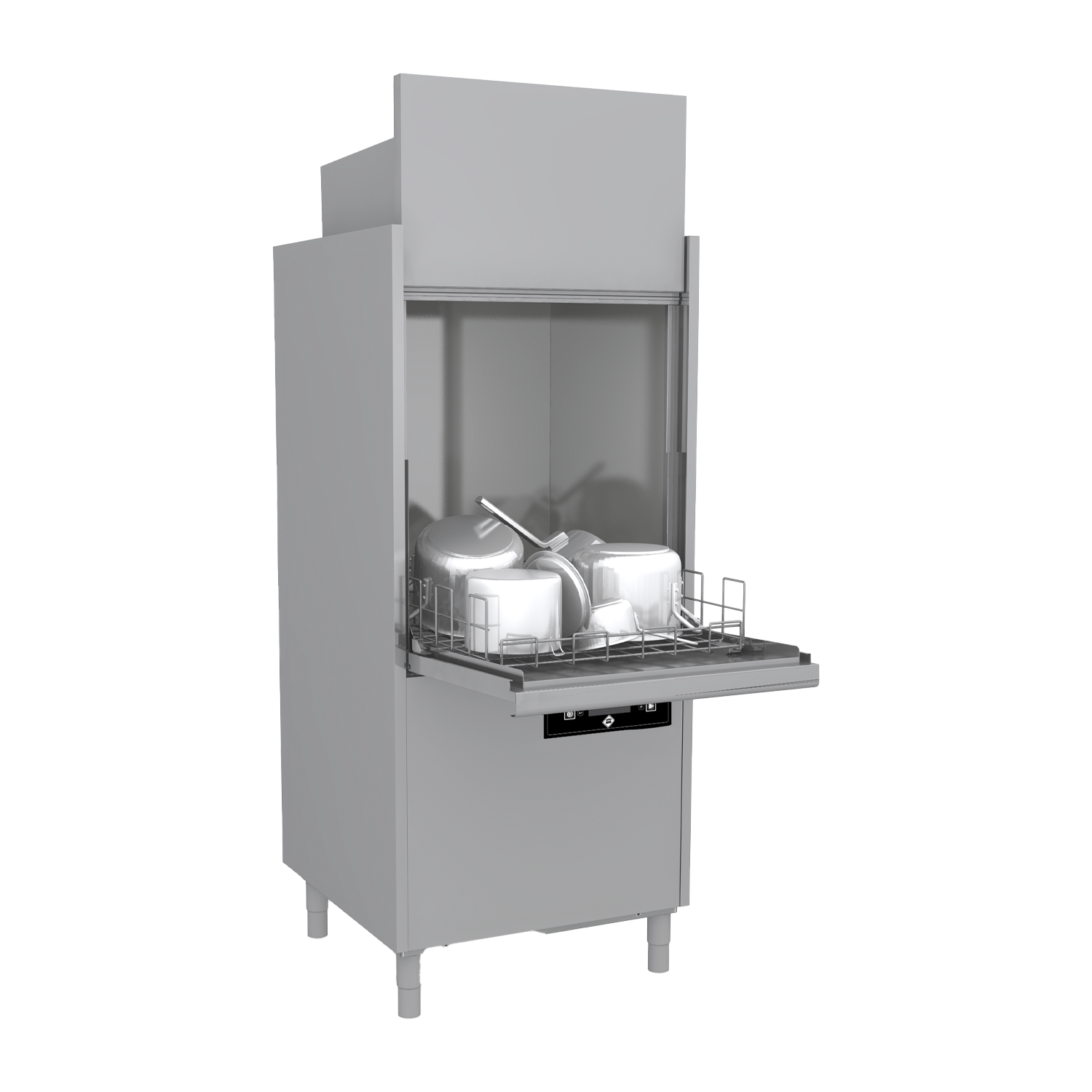

Pot and pan washer double skin with drain pump heat recovery system 70x70 - 400 V | RM - S 202 REC ABT
- Display type: LCD multifunction display
- Number of programs: 11
- Number of skin: 2
- Door clear height [mm]: 850
- Rack size [mm]: 700 x 700
- Water consumption of the washing cycle [l/basket]: 4
- Detergent and rinse pump system: ProDose - accurate dosing with a peristaltic pump
- Wash pump type: two-way - DuoFlow
- Self-cleaning cycle: Yes
- Drain filter: Evolution3 - double filtration with electronically controlled partial discharge before the rinsing phase ensures 0% loss of clean water to waste
Key properties
Technical details
| SAP Code | 00011974 |
| Net Width [mm] | 857 |
| Net Depth [mm] | 853 |
| Net Height [mm] | 2166 |
| Net Weight [kg] | 207.00 |
| Gross Width [mm] | 100 |
| Gross depth [mm] | 950 |
| Gross Height [mm] | 2200 |
| Gross Weight [kg] | 217.00 |
| Device type | Electric unit |
| Control type | Digital |
| Material | AISI 304 |
| Power electric [kW] | 18.700 |
| Loading | 400 V / 3N - 50 Hz |
| Number of programs | 11 |
| Opening of device | Tilting down |
| Door clear height [mm] | 850 |
| Inlet pressure [bar] | 1-6 |
| Adjustable feet | Yes |
| Number of skin | 2 |
| Self-cleaning cycle | Yes |
| Boiler capacity [ l ] | 12.00 |
| Boiler power [kW] | 8.000 |
| Basin volume [l] | 68 |
| Tank power [kW] | 8.000 |
| Number of arms for both rinsing and washing | 2 |
| Arm connection | Hand loosen/tighten screw |
| Washing arm type | Rotating trident |
| Washing arm material | Stainless steel |
| Atmospheric boiler with rinse pump | Yes |
| Rinsing arm type | Rotating trident |
| Rinsing arm material | Stainless steel |
| Deep drawn tank | Yes |
| Rack support | Pressed |
| Tank surface strainers | stainless steel |
| Drain filter | Evolution3 - double filtration with electronically controlled partial discharge before the rinsing phase ensures 0% loss of clean water to waste |
| Thermostop | Yes |
| Boiler thermostat adjust | Yes |
| Detergent and rinse pump system | ProDose - accurate dosing with a peristaltic pump |
| Energy Saving system | EnergySaving - Energy saving system due to lowering the boiler temperature |
| Rinse system | UltraRinse2 - stainless steel rinsing arms including stainless steel nozzles with a geometry for spraying water in thin jets directly against the dishes, the rinsing pump ensures constant pressure |
| Heating system | HotWash - System of simultaneous operation of the heating element of the bath and the boiler, reducing the time for starting the next cycle |
| Quick heating system | QuickReady - System for rapid heating of water in the tank |
| Heat recovery | 1 copper-aluminum battery - saving up to 40% of the energy needed to heat the water in the boiler, at the same time, by absorbing the released steam, it eliminates the need to use a hood |
| Hot water electric valve | Yes |
| Closing door system | ProSoft - Reduces noise, dampens the door stop, which could cause damage to dishes |
| Rack size [mm] | 700 x 700 |
| Display type | LCD multifunction display |
| USB port | Yes, for Firmware actualisation |
| Drain pump | Yes |
| Self-diagnostics | Yes |
| Wash pump type | two-way - DuoFlow |
| Detergent dispenser | Yes |
| Rinse aid dispenser | Yes |
| Water consumption of the washing cycle [l/basket] | 4 |
| Rinse water temperature [°C] | 80-85 |
| Additional information | The product comes with 1x RM Clean+ 12 kg (00012271) and 1x RM Rinse+ 10 kg (00012273) for free |
| Program ProFessional 2 | Yes |
| Program ProFessional 4 | Yes |
| Program ProFessional 6 | Yes |
| Program ProFessional 8 | Yes |
| Program ProFessional 10 | Yes |
| Program ProClean | Yes |
| Program ProDrain | Yes |
| Program ProEco | Yes |
| Program ProLong | Yes |
| Program ProActive 5 | Yes |
| Program ProActive 7 | Yes |
