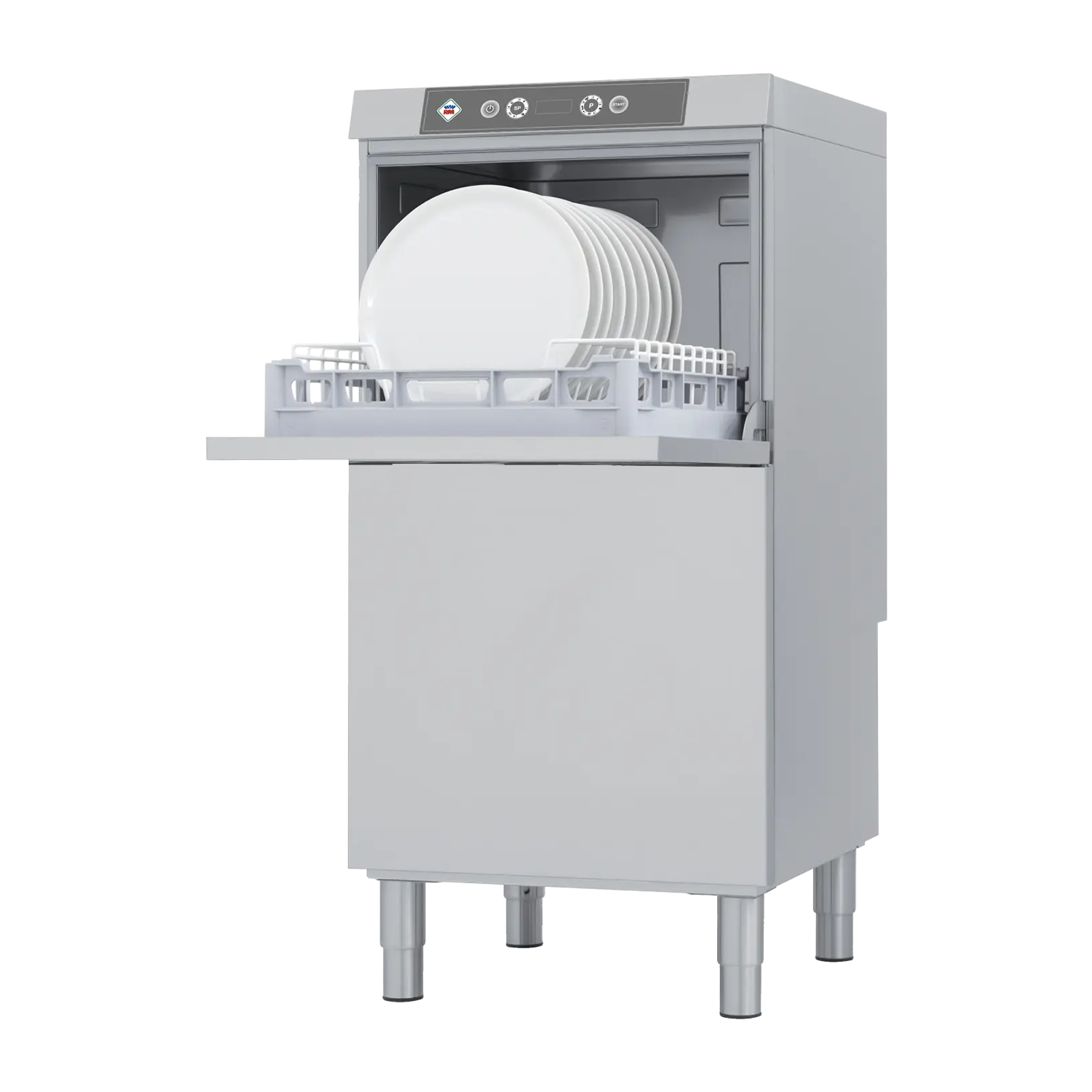

Undercounter dishwasher double skin 50x50 - 400 V | RM - NT 52 TB
- Display type: ProScreen - 4 digit display + 2 LED bars
- Number of programs: 7
- Number of skin: 2
- Door clear height [mm]: 465
- Rack size [mm]: 500 x 500
- Water consumption of the washing cycle [l/basket]: 1,8
- Washing cycle time [s/basket]: 60-90-180
- Detergent and rinse pump system: ProDose - accurate dosing with a peristaltic pump
- Wash pump type: two-way - DuoFlow
- Self-cleaning cycle: Yes
- Drain filter: ArchiMedes - double filtration with overflow discharge ensures only 18% loss of clean water to waste
Technical details
| SAP Code | 00011288 |
| Net Width [mm] | 600 |
| Net Depth [mm] | 600 |
| Net Height [mm] | 1250 |
| Net Weight [kg] | 63.00 |
| Gross Width [mm] | 650 |
| Gross depth [mm] | 650 |
| Gross Height [mm] | 1300 |
| Gross Weight [kg] | 69.00 |
| Device type | Electric unit |
| Control type | Digital |
| Material | Stainless steel |
| Power electric [kW] | 7.900 |
| Loading | 400 V / 3N - 50 Hz |
| Number of programs | 7 |
| Opening of device | Tilting down |
| Door clear height [mm] | 465 |
| Inlet pressure [bar] | 2-4 |
| Adjustable feet | Yes |
| Number of skin | 2 |
| Self-cleaning cycle | Yes |
| Boiler capacity [ l ] | 6.00 |
| Boiler power [kW] | 6.000 |
| Basin volume [l] | 15 |
| Tank power [kW] | 1.400 |
| Number of arms for both rinsing and washing | 2 |
| Arm connection | Click-clack - easy removal with one hand |
| Washing arm type | Rotatable two-pronged |
| Washing arm material | Composite |
| Rinsing arm type | Rotating two-pronged |
| Rinsing arm material | Composite |
| Deep drawn tank | Yes |
| Rack support | Pressed |
| Tank surface strainers | composite |
| Drain filter | ArchiMedes - double filtration with overflow discharge ensures only 18% loss of clean water to waste |
| Thermostop | Yes |
| Boiler thermostat adjust | Yes |
| Rack feed capacity | 60-40-20 |
| Detergent and rinse pump system | ProDose - accurate dosing with a peristaltic pump |
| Energy Saving system | EnergySaving - Energy saving system due to lowering the boiler temperature |
| Heating system | HotWash - System of simultaneous operation of the heating element of the bath and the boiler, reducing the time for starting the next cycle |
| Hot water electric valve | Yes |
| Closing door system | ProSoft - Reduces noise, dampens the door stop, which could cause damage to dishes |
| Rack size [mm] | 500 x 500 |
| Display type | ProScreen - 4 digit display + 2 LED bars |
| USB port | Yes, for Firmware actualisation |
| Self-diagnostics | Yes |
| Wash pump type | two-way - DuoFlow |
| Detergent dispenser | Yes |
| Rinse aid dispenser | Yes |
| Water consumption of the washing cycle [l/basket] | 1,8 |
| Washing cycle time [s/basket] | 60-90-180 |
| Rinse water temperature [°C] | 80 |
| Standard equipment for device | 1x glass basket, 1x plate basket, 1x cutlery basket |
| Additional information | The product comes with 1x RM Clean+ 12 kg (00012271) and 1x RM Rinse+ 10 kg (00012273) for free |
| Program ProSpeed | Yes |
| Program ProFessional | Yes |
| Program ProTemp | Yes |
| Program ProSelf | Yes |
| Program ProEco | Yes |
| Program ProLong | Yes |
| Program ProGlass | Yes |
| Noise of device | 59,4 |
