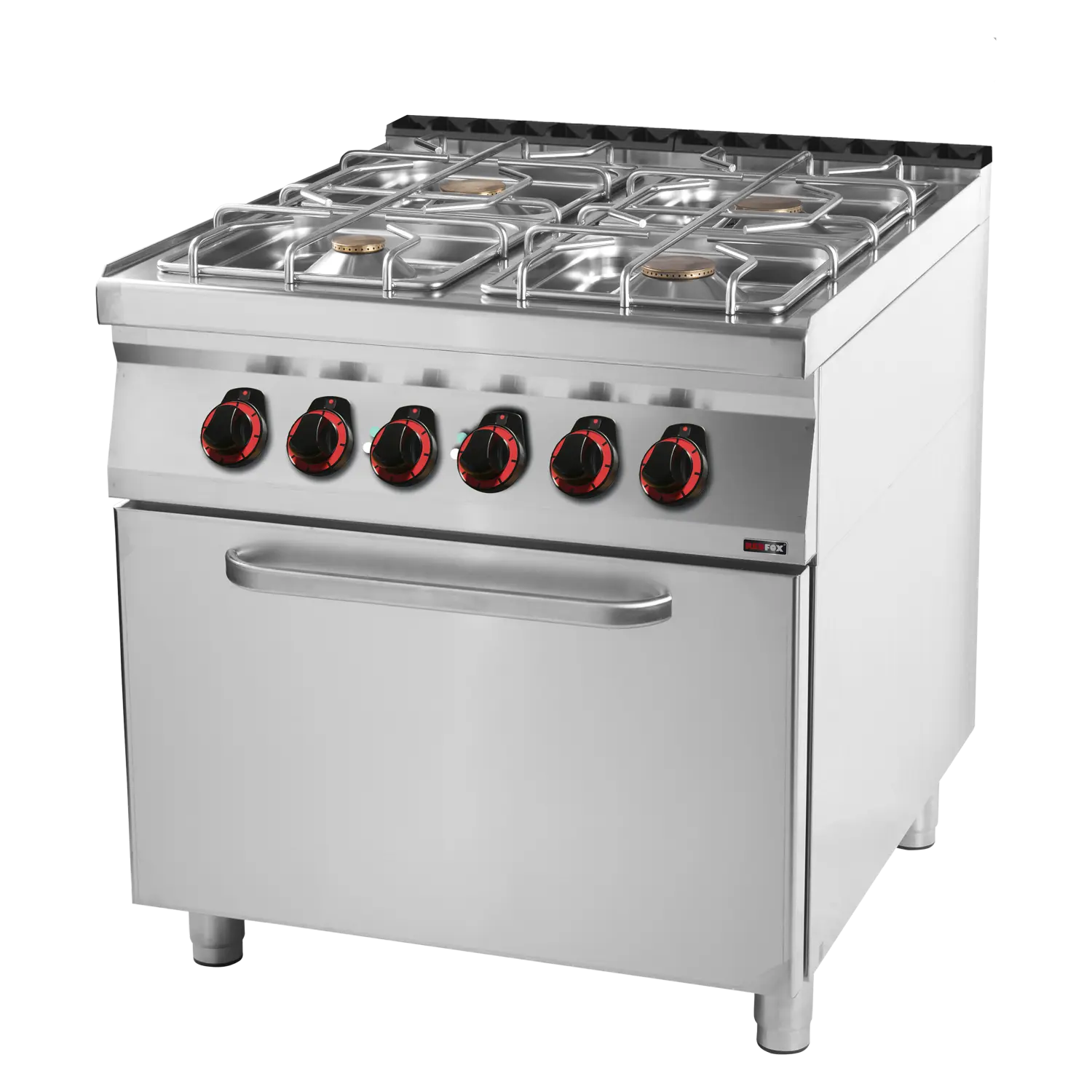

Cooking range combined with static electric oven GN 2/1 - 4x burner | REDFOX - SPT 90/80-21 GE
- Device type: Combined unit
- Power consumption of the zone 1 [kW]: 8
- Power consumption of the zone 2 [kW]: 8
- Power consumption of the zone 3 [kW]: 5
- Power consumption of the zone 4 [kW]: 3,5
- Type of internal part of the appliance 1 (eg oven): Electric
- Type of internal part of the appliance 2 (eg oven): Static
- Protection of controls: IPX4
- Material: AISI 304 top plate, AISI 430 cladding
Key properties
Technical details
| SAP Code | 00011720 |
| Net Width [mm] | 800 |
| Net Depth [mm] | 900 |
| Net Height [mm] | 900 |
| Net Weight [kg] | 105.00 |
| Gross Width [mm] | 970 |
| Gross depth [mm] | 840 |
| Gross Height [mm] | 1160 |
| Gross Weight [kg] | 115.00 |
| Device type | Combined unit |
| Construction type of device | With substructure |
| Power electric [kW] | 6.300 |
| Loading | 400 V / 3N - 50 Hz |
| Power gas [kW] | 24.500 |
| Type of gas | Natural gas, propane butane |
| Protection of controls | IPX4 |
| Material | AISI 304 top plate, AISI 430 cladding |
| Worktop type | With removable containers - convenient maintenance, cleaning and service access |
| Worktop material | AISI 304 |
| Worktop Thickness [mm] | 1.50 |
| Number of zones | 4 |
| Power consumption of the zone 1 [kW] | 8 |
| Power consumption of the zone 2 [kW] | 8 |
| Power consumption of the zone 3 [kW] | 5 |
| Power consumption of the zone 4 [kW] | 3,5 |
| Service accessibility | Trough the frontal panel |
| Safety element | thermocouple |
| Safety thermostat up to x ° C | 360 |
| Adjustable feet | Yes |
| Number of burners/hot plates | 4 |
| Type of gas cooking zones | Classic |
| Burner type | Brass, detachable |
| Timer | No |
| Oven Type | electrical static |
| Oven size | GN 2/1 |
| Oven material | Stainless steel |
| Type of internal part of the appliance 1 (eg oven) | Electric |
| Type of internal part of the appliance 2 (eg oven) | Static |
| Width of internal part [mm] | 558 |
| Depth of internal part [mm] | 682 |
| Height of internal part [mm] | 248 |
| Gasket | Yes |
| Maximum temperature of the inner chamber [°C] | 50 |
| Minimum temperature of the inner chamber [°C] | 300 |
